Transmission Lifter 4x4/SUV/Light Commercial
- Product Code: 2053T *DISCONTINUED*
- Brand: TradeQuip Professional
CURRENTLY DISCONTINUED !
This Product has been superseded by another model
CLICK HERE - Transmission 4X4/SUV/Light Commercial

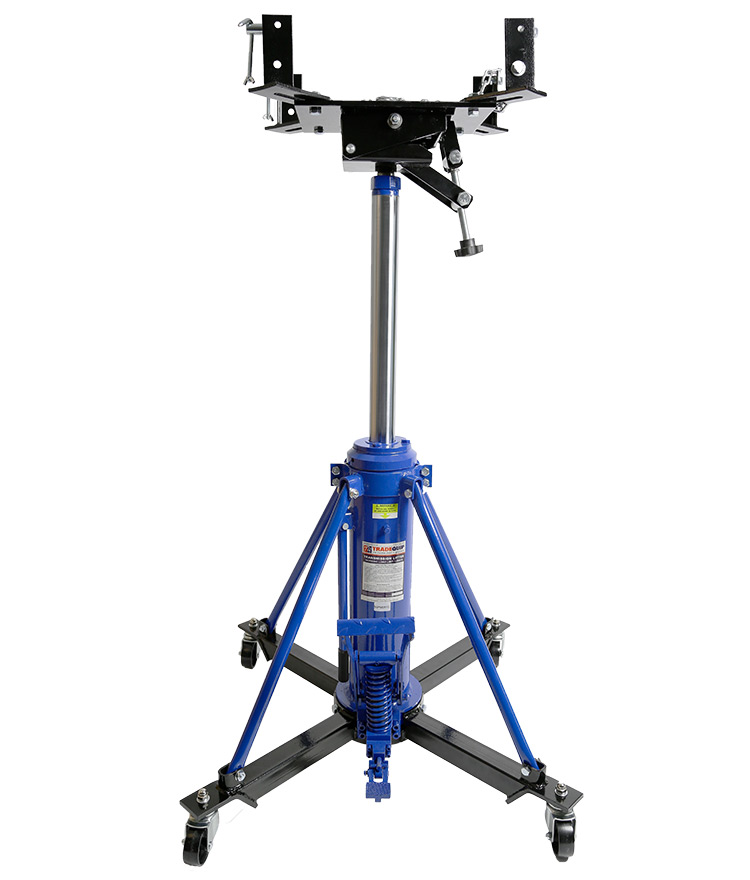

The TradeQuip "Made for the Trade" 1,000kg Transmission Lifter is designed for transmission installation and removal. It features a universal lifting platform that provides a wide fore and aft tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.
This 2-stage telescopic transmission lifter offers a wide range of versatility that will to help increase workshop productivity. Designed to accommodate both large and small transmissions, this handy piece of equipment is ideal for use with passenger, SUV, 4x4 and Light Commercial with GVM of less than 3,200kg. The wide base is enhanced by the additional strut arms and heavy-duty steel swivel castors for easy manoeuvring throughout the workshop under load.
Features:
- Base frame is constructed of high-grade steel and built to exacting standards for quality and durability
- 2-Stage hydraulic lift
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life

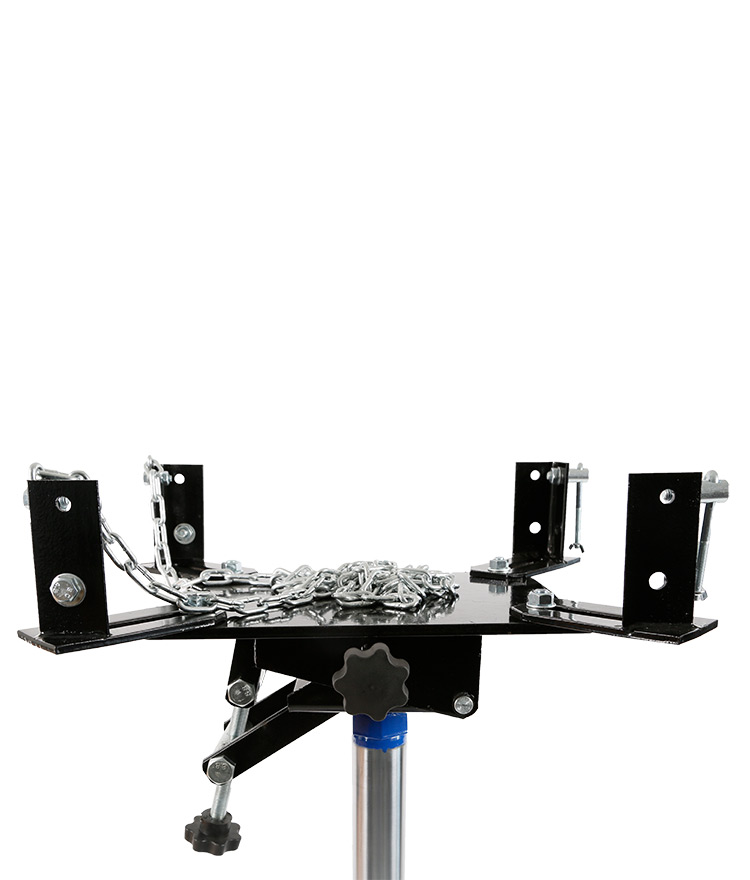

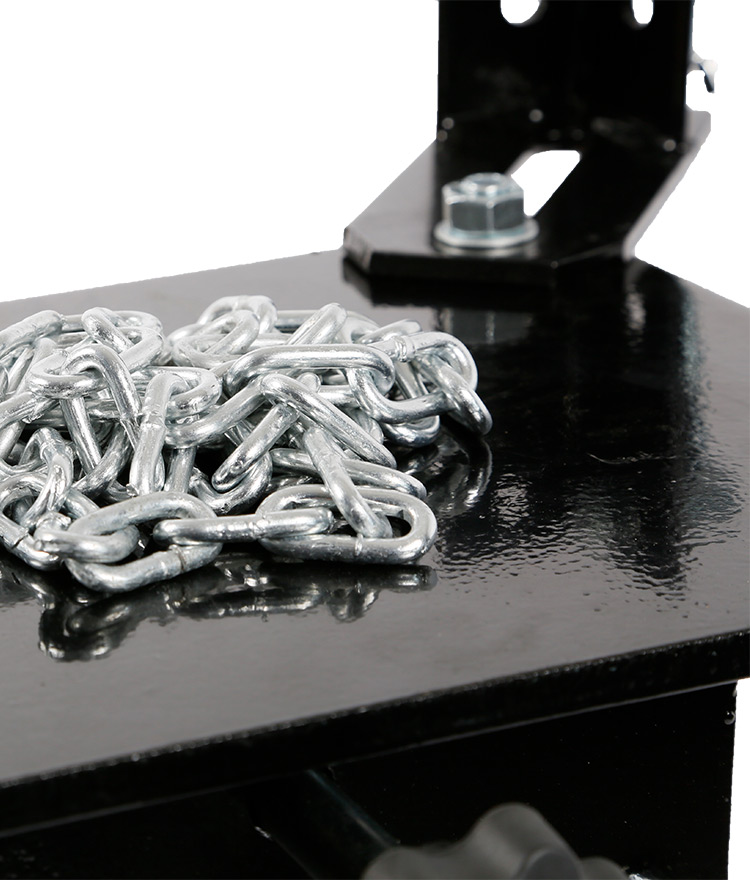

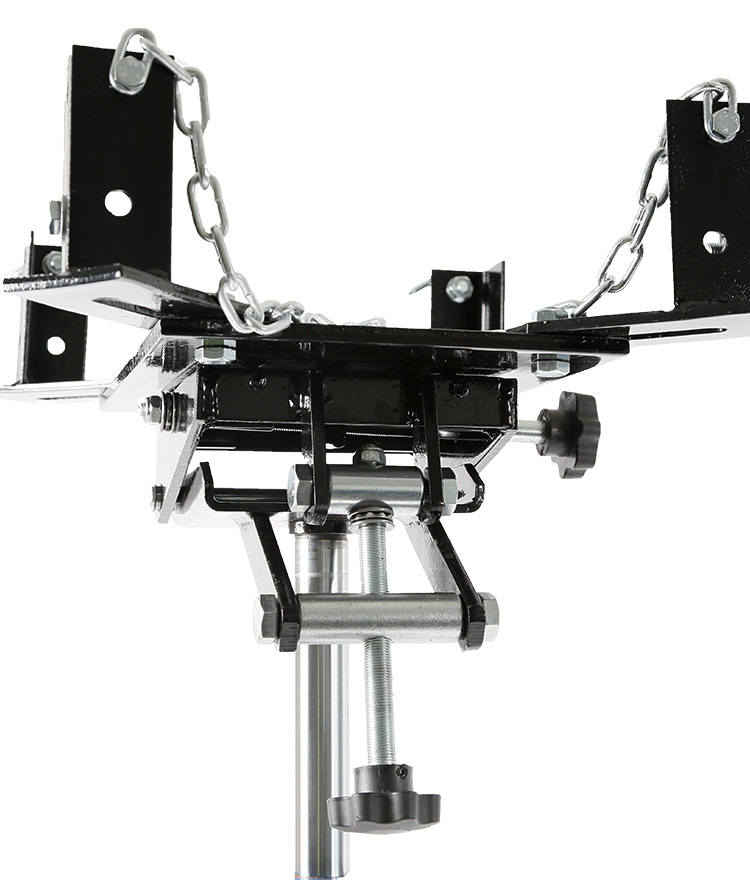

- Universal 2-way tilt lifting platform complete with safety chains
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint finish is oil, grease and dirt-resistant for easy cleanup
- Heavy-duty steel swivel castors
Specifications:
- Safe Working Capacity: 1,000kg
- Minimum Height: 860mm
- Maximum Height 1850mm
- Lifting Platform Size: 355L x 255W
- Forward Tilt: 15°
- Rearward Tilt 7°
- Base Dimensions: 730 x 730mm
- Nett Weight: 82kg
- Carton: 560 x 390 x 820mm
- Gross Weight: 89kg
Intended Use
Designed for the removal, installation and transportation (in the lowered position) of 4WD and light commercial transmissions that are raised by an in-ground or above-ground lift. Not designed for supporting loads.
Print version
Owners Manual Product Guide Bleed Instructions Bleed Instructions Advanced Product Information Tips
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment by professional users. With proven and trusted “Made for the Trade” reliability, 'TradeQuip' branded products offer the very best in performance for an affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
