Engine Crane 3000kg

  • Product Code: 1193
  • Brand: TradeQuip Professional

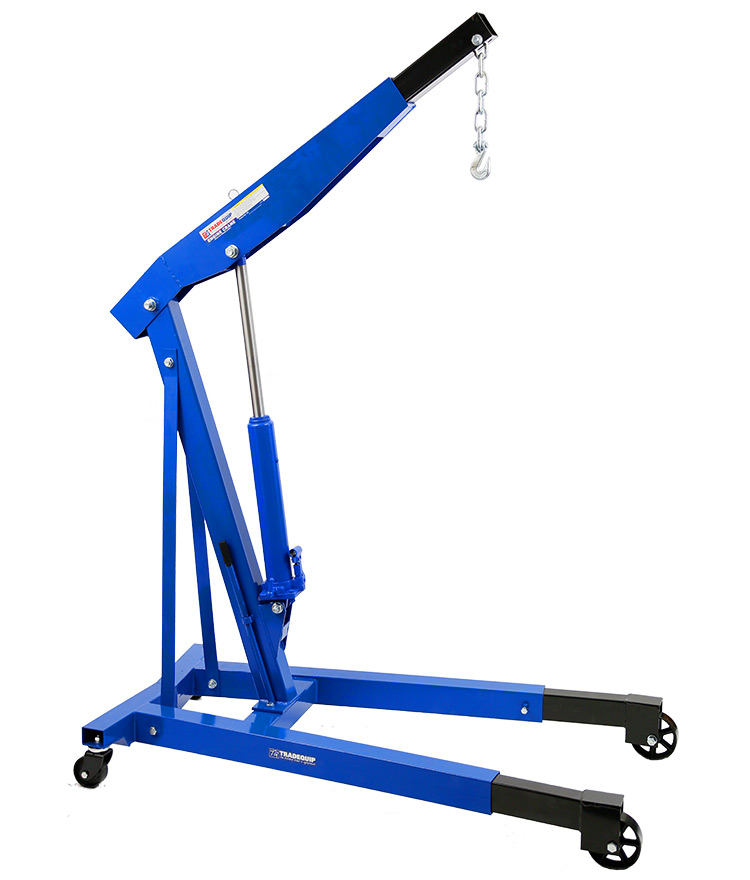

This Heavy Duty TradeQuip "Made for the Trade" Engine Crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 3,000kg. Very simple to use manual hydraulic operation. The jib extends to the desired lifting capacity of 1000kg, 2000kg or 3000kg secured by a single locking pin. Mounted on heavy duty castor wheels for excellent manoeuvrability around the workshop. The lifting range is 0-2500mm so any large engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.
 Features
  • Industrial grade engine crane
  • Heavy duty hydraulic pump
  • Adjustable boom in four positions for lifting
  • Robust steel fabricated legs with structural supports

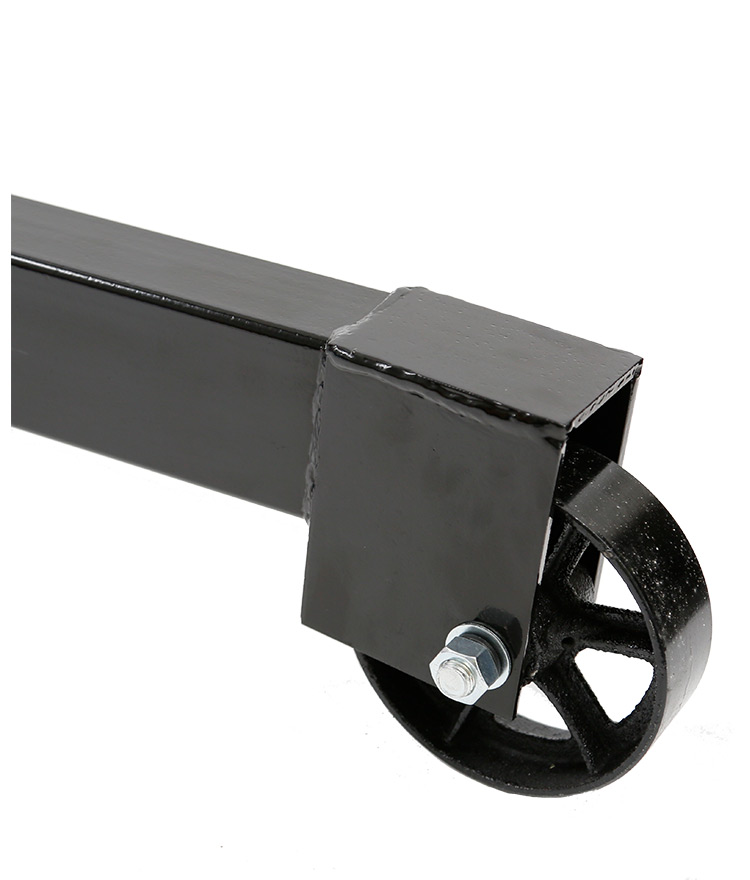

  • Large castor wheels for easy mobility

Specifications

  • Safe Working Capacity: 3,000kg
  • Folded Height: 1540mm
  • Maximum Lifting Height @ 3000kg: 1745mm
  • Maximum Lifting Height @ 1000kg: 2088mm
  • Jib Length Fully Retracted @ 3000kg: 1100mm
  • Jib Length Fully Extended @ 1000kg: 1730mm
  • Overall Length Fully Extended: 2385mm
  • Overall Length Fully Retracted: 1480mm
  • Overall Width Fully Extended: 875mm
  • Overall Width Fully Retracted: 785mm
  • Leg Height 190mm
  • Nett Weight: 121.5kg
  • Carton 1 of 3 : 1330 x 860 x 100mm (Weight: 29kg)
  • Carton 2 of 3 : 1470 x 300 x 200mm (Weight: 82kg)
  • Carton 3 of 3 : 700 x 180 x 150mm (Weight: 15kg)




Intended Use

For regular professional use, to raise and/or lower diesel engines and transmissions during service or repair work.


Print version           Owners Manual            Product Guide            Product Information Tips


About the TradeQuip brand

Our Flagship brand of garage and workshop equipment, TradeQuip is designed for use in a demanding garage and workshop environment by trade users. With proven and trusted “Made for the Trade” reliability, TradeQuip branded products offer the very best in performance for an affordable price. The TradeQuip range is covered by a 12 month trade use warranty.
