Workshop Fan Misting 650mm
- Product Code: 1182T
- Brand: TradeQuip
'2021 Model'

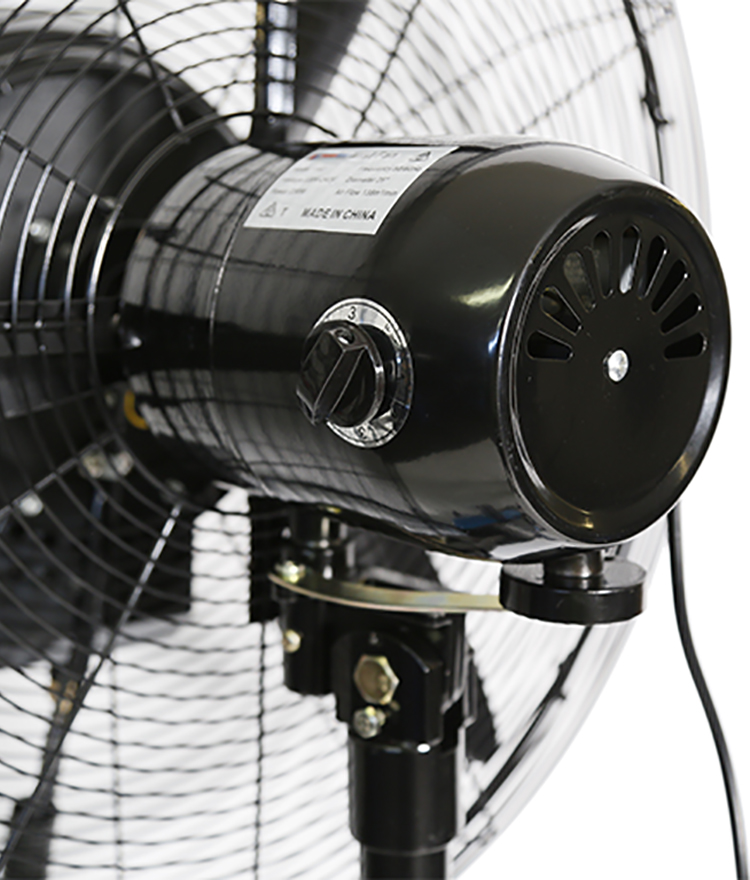

The TradeQuip "Made for the Trade" Misting Fan features an extra strong heavy duty grill and powerful 240V 230W 3 speed motor with an adjustable oscillating head. The fan evaporation absorbs the heat and decreases the temperature, improves the relative humidity and reduces the dust.
COOLING COVERAGE AREA
The TradeQuip 1182T "Made for the Trade" Misting Fan is considered a commercial grade misting fan and is ideal for large-scale industrial applications. That’s because it offers a substantially wider coverage area of 200 square metres. This mister fan is specifically designed for cooling large areas such as workshops, warehouses, greenhouses, and more.
TEMPERATURE DROP AND WATER CONNECTION
The 1182T commercial mist fan can also provide a significant reduction in ambient temperature, with a 2-8°C drop, and operates with optimal output in temperatures up to 40+°Celcius. That means that it can bring the working temperature down to a nice 32°C or below in extreme heat conditions. Equipped with it's own water storage tank, makes this unit extremely portable with up to 5 hours of misting time. The tank can hold up to 41 litres of water which can also turn this fan into an outdoor cooler more convenient if you don’t have immediate access to a water hose line.
OSCILLATION, SPRAY, AND FAN SPEEDS
TradeQuip's commercial grade misting fan combines a high pressure, centrifugal misting system with a blower fan. That means there are no misting nozzles and thus no possibility of clogging from hard water build-up. There are 3 fan speeds to choose from — low, medium, and high — with respective RPMs of 1400, 1500, and 1700. This outdoor fan has a very wide head, at 650mm across, and when combined with the oscillation option, is highly effective at cooling industrial, horticulture, agriculture, and commercial operations.
The fan is fed by a huge 41 Litre water storage tank and includes a no mess drip collector. You can also control the mist volume output to help get you through the heat this summer.
Features
- Great for workshops and factory floor areas
- Adjustable height to 1.8m and 3 speed operation

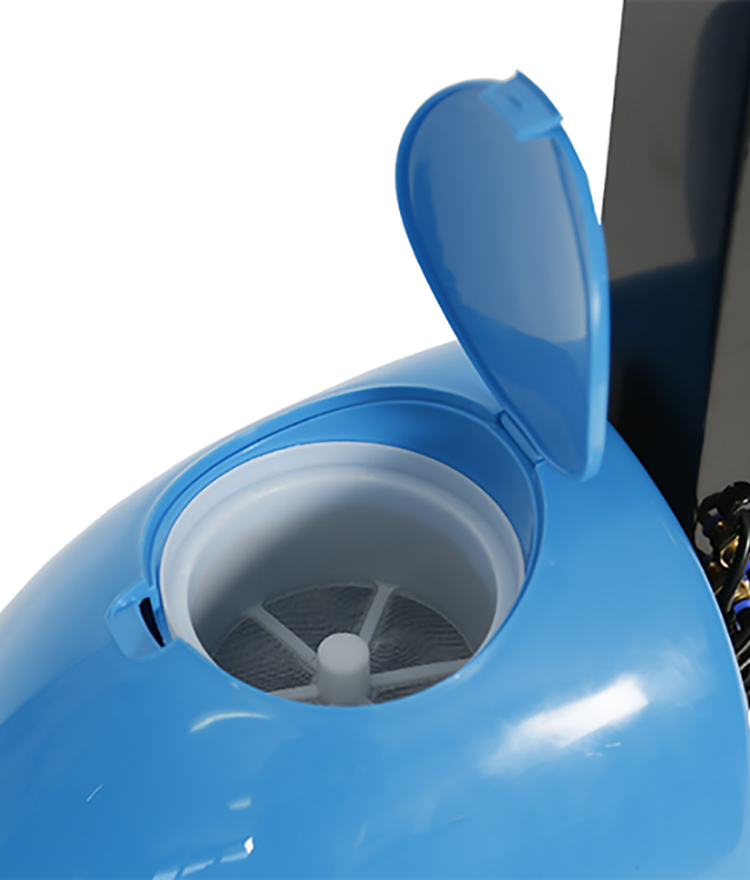

- Large water storage tank
- Integrated water reservoir
- No mess drip water collector
- Heavy duty base for safety and stability
- Portable installation: self-contained unit moves easily between locations;

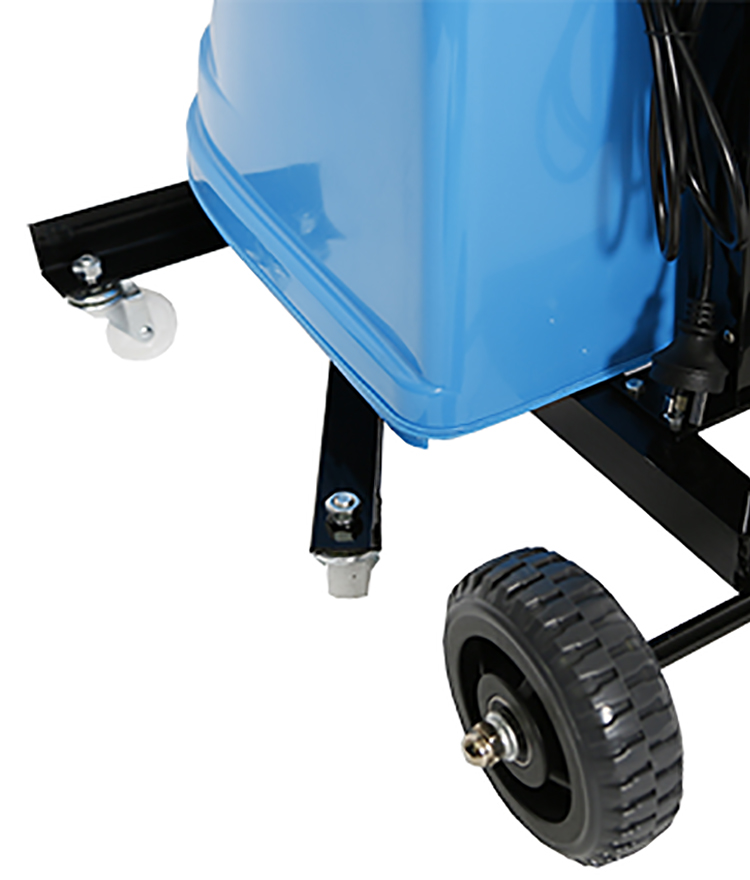

- Fixed wheels and lockable castors for safety and convenience

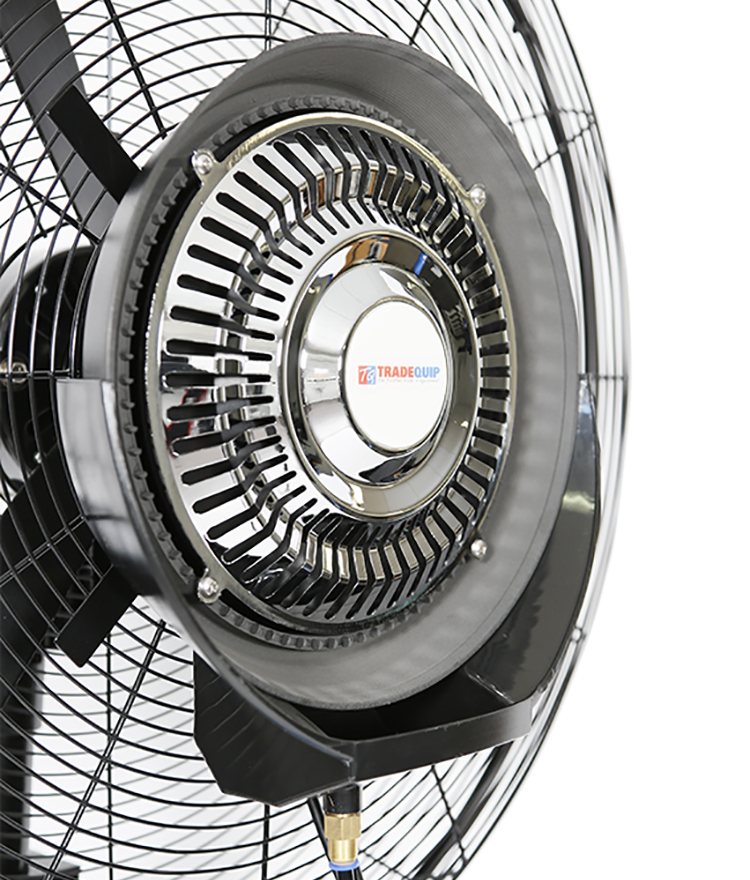

- Nozzle-less misting hub technology (high-speed centrifugal atomiser) is guaranteed not to clog
- Adjustable dial to control misting volume
- Low pressure water pump for reliability and longevity
- Automatic shut-off when water tank is empty
- Suitable for cooling people, stockbreeding and greenhouse applications
Specifications

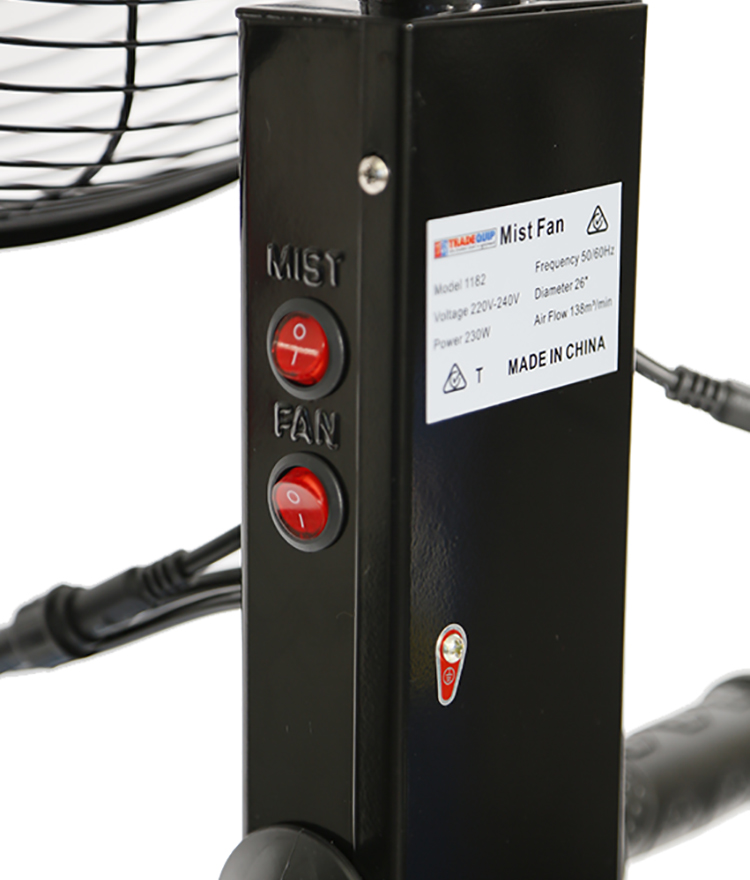

- Motor: 240V/50Hz/260W 3 Speed
- Fan Blade: 650mm Cast Steel 3 Blade
- Noise Level: 60dB(A)
- Maximum airflow: 138 cubic metres per minute
- Oscillation angle: 90º
- Fan tilt adjustable: 30º
- Adjustable Mist - Exit Vol: 0-16kg/Hour
- Effective area: 200 sq metres
- Operating Temperature: 10 - 50° Celcius
- Effective temp drop: 2 - 8° Celcius
- Operation Humidity: 10% - 85%
- Diameter of atomised drip: < 10 um
- Mist Jet distance: 8-10 m
Intended Use:
This equipment is intended to be used for cooling industrial or trade workshop/office environments by misted airflow circulation. Best used to cool when directed at a small area.
This product is an Industrial Product and not suitable for household use.
