Oil Drainer with Hand Pump 65Litre
- Product Code: 1147T
- Brand: TradeQuip Professional

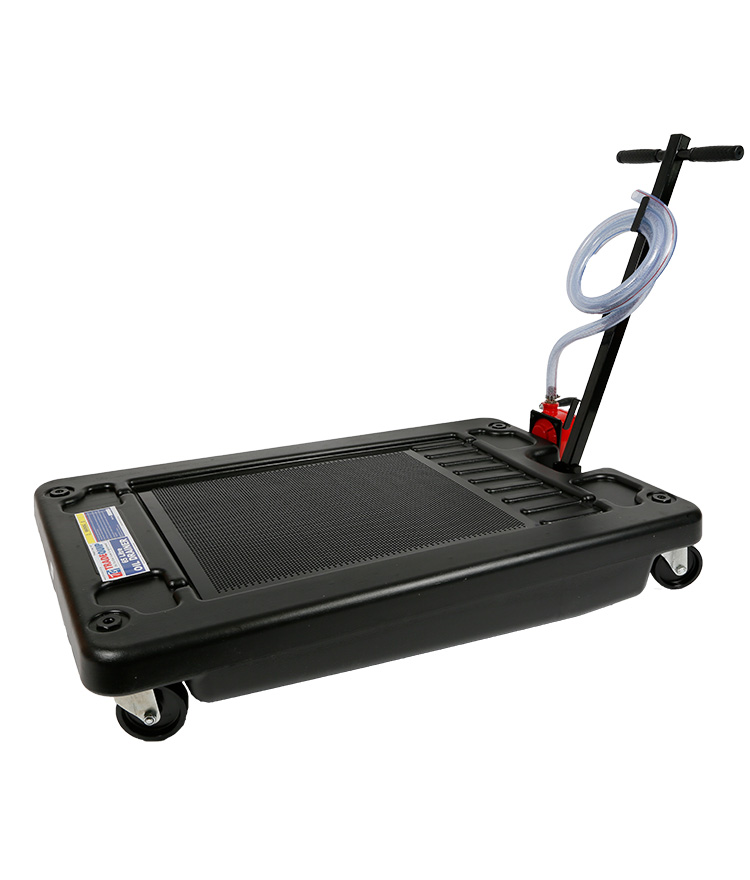

The TradeQuip "Made for the Trade" Truck Oil Drain Pan offers a low-profile design that can be easily positioned under high-clearance vehicles for capturing used fluids including engine oil, coolant and transmission fluid.
This model features a 65 Litre capacity reservoir moulded from robust, lightweight high-impact polypropylene and is mounted on four 100mm diameter swivel castors. The drains offer a choice of three discharge methods.

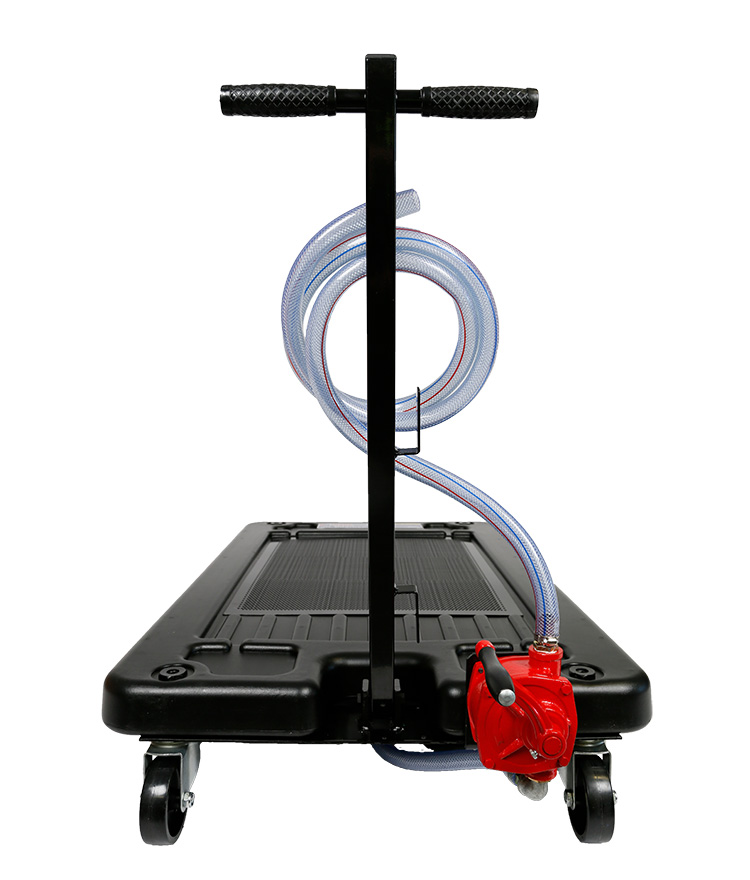

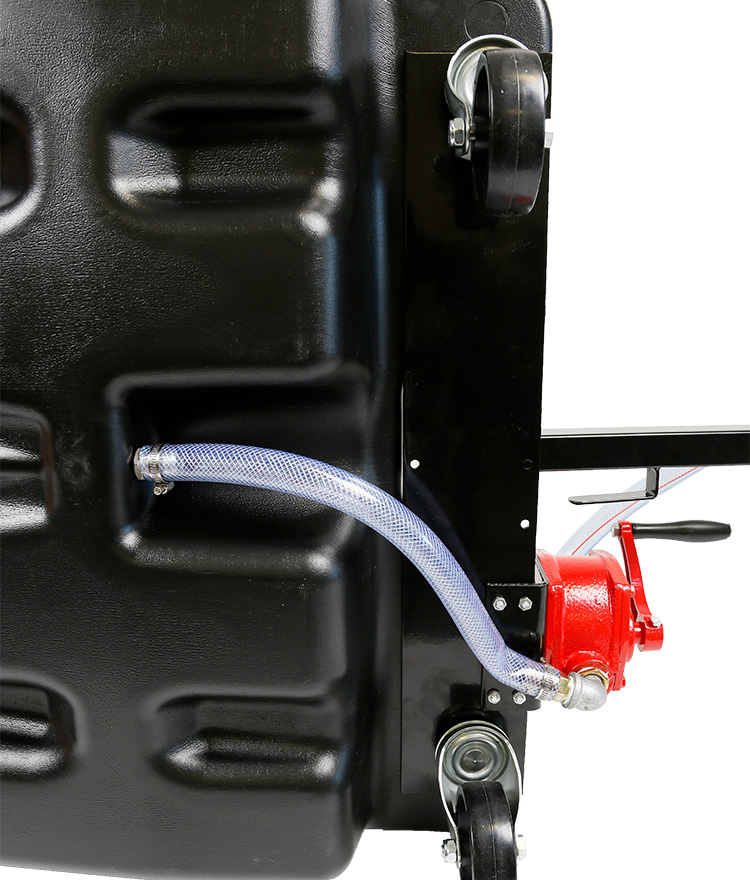

Designed for positioning under high-clearance vehicles, this low-profile oil drainer captures/discharges used fluids via the rotary hand pump mounted horizontally on the front of the reservoir and discharge hose installed at the outlet. Mounted on four, 100mm diameter swivel castors, each truck drain has an overall clearance height of only 195 millimetres.
Features
- Lightweight high-impact polypropylene
- Suitable for engine oil, coolant and transmission fluid

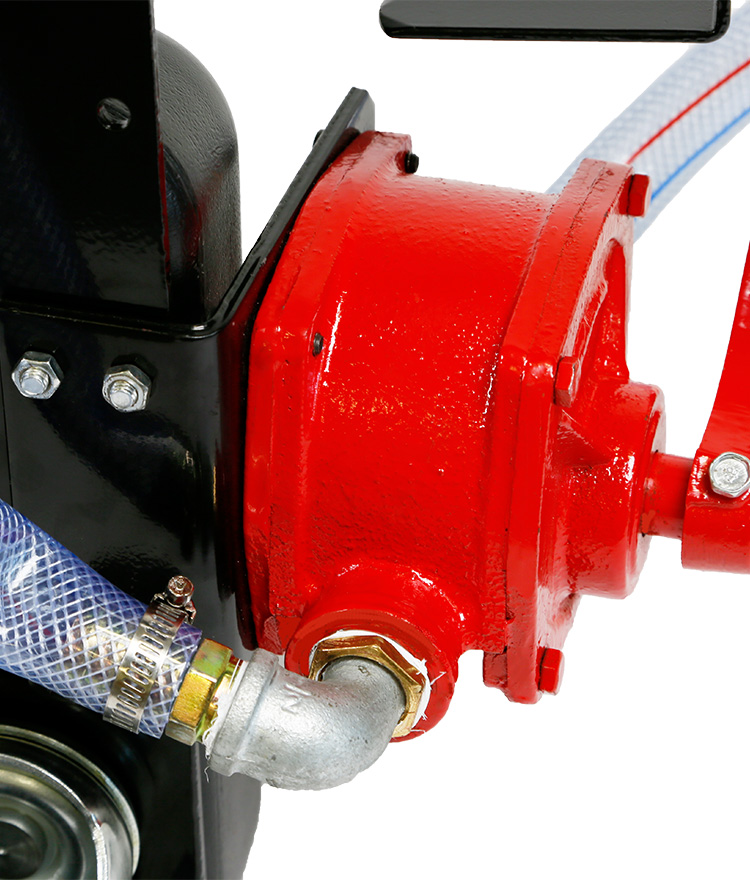

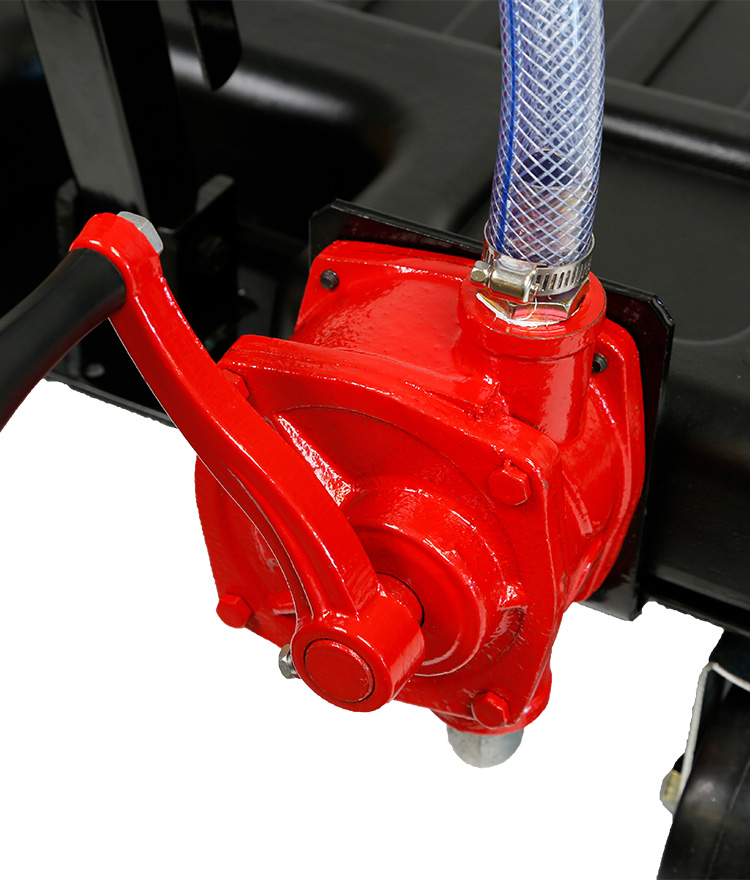

- Built-in rotary hand discharge pump

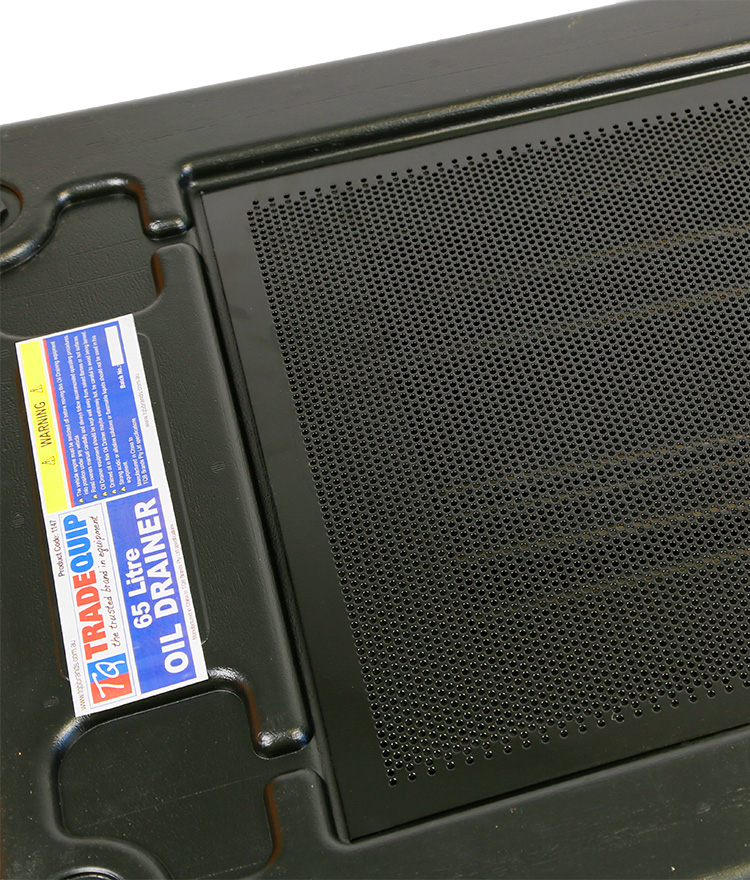

- Removable metal filter screen
- Smooth rolling rubber castor wheels
Specifications
- Pan Capacity: 65Litres
- Swivel Castor Wheels: 100mm
- Discharge Hose Length: 1800mm
- Minimum Clearance: 195mm (Pan Height)
- Material: Industrial Grade Polypropylene
- Tank Size: 1300(H) x 730(L) x 200(W)mm
- Weight: 21kg
- Carton: 1140 x 730 x 200mm
Intended use
This oil drain pan is designed to drain waste oil from engines, gearboxes, differentials of heavy vehicles.
